Seam-Sealed vs Regular Seams: What Outerwear Brands Must Specify

QUICK ANSWER

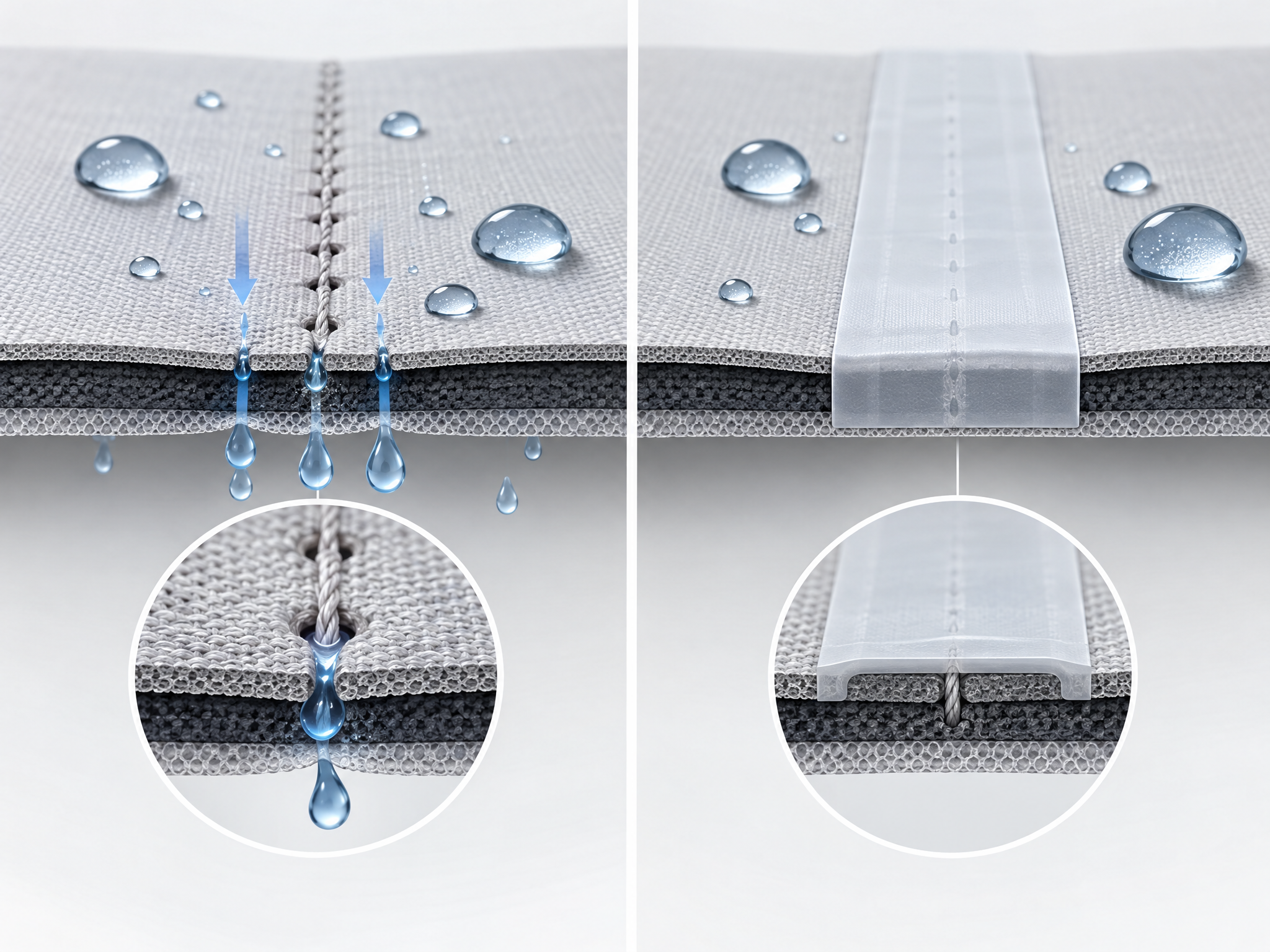

Seam-sealed (taped) seams have a waterproof tape heat-bonded over the stitching; regular seams leave the needle holes exposed. Every stitch punctures the fabric, so a regular seam leaks under sustained rain or wind pressure even when the face fabric is waterproof. For any garment rated at 10,000 mm hydrostatic head or above, fully taped seams are the expected construction standard.

Why the Seam Decides Whether a Jacket Is Waterproof

Fabric gets the attention in most product briefs. Seams decide the outcome in the field. A flat panel of coated or laminated fabric can hold an impressive hydrostatic head with almost no leakage — but the moment panels are sewn into a three-dimensional garment, the needle punches a continuous line of holes straight through that barrier, and water does not need much encouragement to find them.

Two physical effects do most of the damage. Capillary action pulls water through narrow channels regardless of gravity: at a gap radius around 0.1 mm — roughly what a stitched seam leaves behind — water can wick upward about 15 cm. Halve that gap and the wicking distance roughly doubles. Pressure then makes it worse: wind-driven rain against an exposed shoulder creates a pressure differential that actively pumps water through open stitch channels rather than letting it sit.

The practical consequence for brands is simple but expensive to learn: a fabric test report measures unstitched fabric. It tells you nothing about the finished garment.

The Core Difference

How Seam Sealing Actually Works

Three methods are in commercial use, and the choice affects both performance and price:

Hot-air seam tape (most common). A waterproof PU or TPU tape is fed over the stitched seam and bonded under controlled heat and pressure. The heat melts the adhesive backing; pressure forces it into the fabric. It is compatible with PU and TPU membranes and is the standard approach for the majority of OEM rain jacket programs.

Ultrasonic welding. High-frequency vibration fuses thermoplastic panels directly, with no needle and no thread. Used for premium seam-free construction and selected panel bonding. Higher equipment cost and narrower fabric compatibility.

Liquid seam sealant. A brush- or machine-applied coating over the stitch line. The lowest-cost option, but coverage is inconsistent and durability is limited. It is not recommended for garments making a waterproof performance claim.

Non-Taped vs Critically Taped vs Fully Taped

Rule of thumb: if the garment will be marketed at 10,000 mm or above, specify fully taped. Below 5,000 mm, position the product as casual or urban rainwear and avoid performance language.

Test Standards to Verify Before Bulk Production

Request third-party reports from SGS, TÜV or Intertek rather than supplier summaries, and ask for the rating measured on the finished garment after seam sealing — not on the raw fabric alone.

WHAT TO PUT IN YOUR TECH PACK

State the seam type explicitly — non-taped, critically taped or fully taped — and never leave it to the factory default. Then specify tape width (commonly 18–22 mm) and material (PU or TPU); hydrostatic head target with the test method (ISO 811 or AATCC 127); breathability target (MVTR or RET); wash-cycle retention requirement (for example, hydrostatic head retained after 20 home launderings); zipper specification, because a taped seam beside an unshielded zipper is a wasted investment; and the bulk inspection method — visual tape adhesion check plus rain-tower or hydrostatic testing on finished garments.

COMMON MISTAKES WE SEE

Specifying a high fabric rating but leaving seam treatment undefined, so the factory defaults to the cheapest option. Treating spray rating as proof of waterproofing. Investing in fully taped seams while leaving pocket welts, zipper garages and hood attachments unsealed. Ignoring wash durability — tape that delaminates after five washes turns a technical jacket into a complaint. And validating only the fabric, which never catches a seam failure.

JXD Capabilities for Waterproof Programs

In-house seam sealing.

Hot-air tape lines with monitored temperature, pressure and roller speed, with adhesion checks run on every production batch.

Technical specification review.

Our merchandising team reviews your tech pack before sampling and flags seam, tape and zipper specifications that are missing or inconsistent with the target price point.

Verified testing.

Hydrostatic head, spray rating and finished-garment rain tests coordinated with third-party laboratories; reports issued with the shipment file.

Wash-durability validation.

Tape adhesion and DWR retention checked at 5, 20 and 50 home laundering cycles, so performance claims survive the care label.

Certified manufacturing.

BSCI, WRAP and GRS certified, with REACH, OEKO-TEX and chain-of-custody documentation prepared for European buyers.

Dual-capacity production.

China and Myanmar facilities let brands balance cost, capacity and tariff exposure across programs without changing the specification.
Seam construction sits at the intersection of cost, performance and brand promise. Getting it right at the tech pack stage costs almost nothing; discovering the problem after bulk production costs a season.
Broader Context

Across more than 30 years of ODM outerwear manufacturing, the same pattern repeats: brands invest heavily in fabric selection and treat seam construction as a line item. Yet seam sealing is the single specification most often cited in field complaints, and it is also one of the easiest to control if it is defined early.

For European buyers, the additional requirement is documentation. Waterproof claims need a defensible test trail — hydrostatic head on the finished garment, DWR retention after washing, and EN 343 classification where workwear tenders apply. We prepare that documentation as part of the program rather than as an afterthought.

JXD manufactures fashion jackets, cotton-padded jackets and down jackets alongside technical shells, with BSCI, WRAP and GRS certification and production capacity in both China and Myanmar.

FAQ
What is the difference between seam-sealed and regular seams?

A regular seam is panels joined with thread, leaving exposed needle holes that let water through under sustained rain or wind pressure. A seam-sealed seam has a waterproof tape heat-bonded over the stitching, closing those holes. The face fabric can be identical in both cases; the difference is entirely in what happens at the seam line.

Are critically taped seams enough for a waterproof jacket?

Only for light to moderate exposure. Critically taped seams cover high-impact zones such as the shoulders, hood and upper chest, which is adequate for commuting shells and mid-range outdoor jackets. For garments rated 10,000 mm and above, or for multi-hour rain exposure, fully taped seams are the expected standard.

How can I verify that a supplier seam sealing is genuine?

Inspect the garment interior for continuous tape over every seam with no lifting or gaps, then require a finished-garment test rather than a fabric test. EN 14360 rain-tower testing and hydrostatic testing on sewn seams are the methods that actually validate sealing. Ask for third-party reports from SGS, TÜV or Intertek.

Does seam sealing affect breathability or cost?

Both, but modestly. Non-porous tape slightly reduces breathability in the sealed area, which is why pit zips and mesh vents remain common on technical shells. On cost, seam sealing adds tape material, machine time and inspection. Liquid sealant is the cheapest method with the least consistent coverage; hot-air tape is the standard; ultrasonic welding is the most expensive.

What certifications and test reports should an ODM outerwear manufacturer provide?

For European programs: BSCI or WRAP for social compliance, GRS or RCS for recycled content, OEKO-TEX Standard 100 for chemical safety, and REACH documentation. On performance, expect ISO 811 or AATCC 127 hydrostatic head results, AATCC 22 spray rating, breathability data (ISO 11092 RET or ASTM E96), and wash-retention results per AATCC 135 — measured on the finished garment after seam sealing.
